Everything You Need to Know About 7.3 Injector Cup Symptoms

The 7.3 Power Stroke Engine is known for its durability; however, even well-built engines wear out over time. Many minor issues with cooling or fuel systems tend to manifest before major problems arise.

There is one thing that can damage an engine's performance and reliability. It is very important to learn how to identify 7.3 injector cup symptoms.

What Do Injector Cups Do?

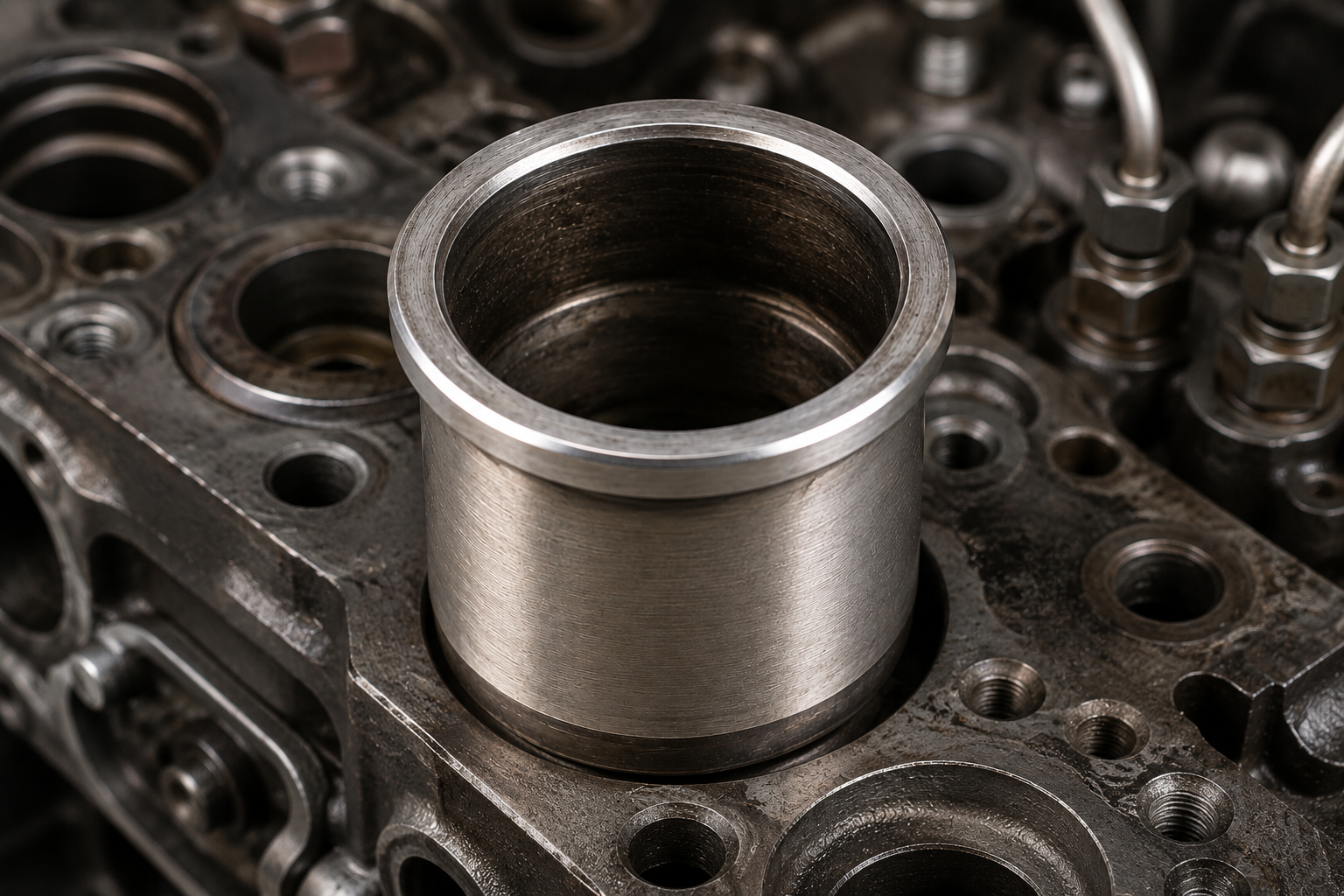

One feature of the 7.3L Power Stroke engine is its injector cups, which are press-fitted to the cylinder heads. The cups provide a sealed connection between the injector and the cylinder head, preventing fuel from contacting the engine coolant.

If there are no sealed 7.3 injector cups in the engine, mixing fuel and coolant could cause severe problems. Injector cups are rather durable but may still be damaged over time.

Why Injector Cups Begin to Fail

Injector cups usually do not wear out immediately. There are several reasons why they may fail prematurely. The main causes of injector cups' failures include:

• High engine mileage

• Heat cycles

• Corrosion in the cooling system

• Proper injector installation

• Cup seals damage

• Engine vibrations

Maintenance procedures will help prevent excessive pressure on the cooling and fuel systems, but wear-out is inevitable.

Early Signs You Shouldn't Ignore

The most common symptoms of a failing injector cup occur before the part fails. Ignoring them can lead to major car repairs.

Loss of coolant without any visible leaks

This is the case when your coolant keeps running out, even though you cannot see where the coolant is leaking from. The problem lies with the injector cup, which allows coolant to enter the engine and fuel system.

Fuel in the Cooling System

One of the most obvious signs of the injector cup failure is the presence of fuel in the cooling system. You can identify the problem by:

• The diesel smell of the coolant tank

• Oil floating in the coolant

• Increased pressure in the coolant system



Difficult Starting

An injector cup leak could allow air into the fuel system or cause an injector malfunction.

This problem would make your truck to start more difficult, particularly after being parked overnight.

White Exhaust Smoke

While starting your truck or while driving, you might see white smoke from the exhaust.

Despite the various causes of white smoke, injector cup damage should also be investigated.

Rough Idling

If combustion is irregular, it will cause your truck to idle roughly.

Whenever there is rough idling, coolant loss, or fuel leakage, you should check your injector cups.

How an Injector Cup Leak Affects Your Engine

A small injector cup leak may not appear harmful in its early stages, but it can cause various issues.

They may include:

• Contamination of the cooling system

• Inefficiency in the engine

• Injection issues

• Overheating

• Higher repair costs

Disregarding this issue leads to other parts of the system being affected.

Diagnosing the Problem Correctly

Problems with the injector cup often appear similar to those with the injector or cooling system. Without proper diagnosis, replacing the injectors unnecessarily could be a waste of time and money. Some of the tests that a mechanic can conduct include:

• Testing for coolant system pressure

• Checking the fuel system

• Testing for contaminated coolant

• Removal of the injector and checking the cup

• Testing for compression or leaks, if required

Should Injector Cups Be Replaced or Repaired?

Damaged or leaking cups should always be changed rather than reused in most situations. Installing new cups with installation equipment will help ensure a good seal is restored, preventing further leakage. It is equally important to follow the manufacturer's installation instructions. Incorrect installation may damage the new cups.

Tips to Help Prevent Future Problems

Even though injector cups are bound to wear out with age, proper maintenance can help them last longer. This can be achieved through:

• Ensuring that you maintain the cooling system properly

• Using the right coolant

• Fixing any overheating quickly

• Checking injectors when servicing the engine

• Dealing with any contamination of the coolant or fuel

Don't Ignore the Warning Signs

The problems with injector cups usually start with slight symptoms, but they never improve without intervention. Diagnosing early will help you avoid coolant contamination, injector damage, and costly repairs. For instance, if your truck exhibits 7.3 injector cup symptoms, then replacing the worn-out Powerstroke injector cups now might save you both time and money.

Final Thoughts

If your truck is showing any of the warning signs discussed in this guide, don't put off the repair. Addressing injector cup issues early can help prevent coolant contamination, fuel system damage, and more expensive engine repairs down the road.

When you're ready to replace worn components, Mississippi Diesel Products offers a wide selection of quality replacement parts for 7.3 Power Stroke, Cummins, and Duramax engines, helping you keep your diesel truck running reliably for the miles ahead.
