6.9 IDI Injectors: Replacement & Performance Guide

The 6.9L IDI engine is getting old, but one reason it remains popular with truck enthusiasts is its simple design. Ford used this engine in trucks during the early IDI era, and it used a mechanical fuel injection system instead of the electronic injection systems used in Powerstroke engines.

Thus, it is crucial to understand how injectors work in such engines. This is because the injectors control how the fuel enters the combustion chambers. Injector condition affects vehicle performance, especially starting difficulty and smoke. So, 6.9 IDI injectors are worth knowing about for any truck owner.

How the 6.9L IDI Fuel System Works

The 6.9L International Diesel employs a mechanical fuel-injection system. Fuel is supplied to the injection pump, where it is metered and delivered under pressure to the respective injectors. The injectors open according to the appropriate pressure and deliver fuel to their respective pre-combustion chambers. Because this system relies on the interaction of mechanical parts, injector function, injection pump performance, fuel quality, and timing are all critical.

When Do IDI Injectors Need Attention?

Injectors wear down with normal use. Internal parts may fail to function correctly, affecting the required opening pressure and spray patterns for combustion. Some symptoms that an owner may experience include:

• Difficult starting

• Irregular engine idling

• Smoke from the exhaust

• Ineffective throttle response

• Loss of engine power

• Bad fuel consumption rate

• Uneven engine performance

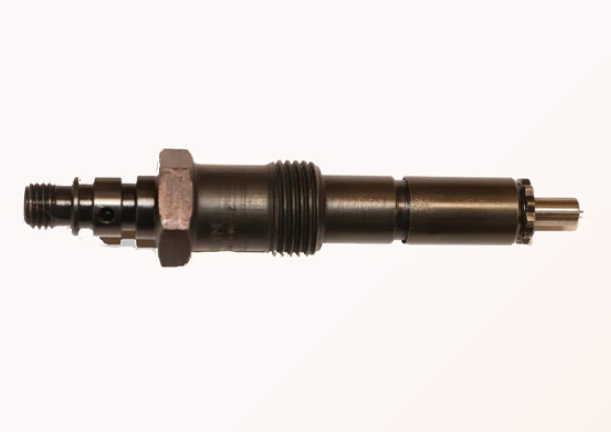

What Makes a 6.9 IDI Injector Different?

The 6.9 IDI injector is part of a mechanically controlled injector system. Don't mistake it for the electronically controlled injectors found in more modern Powerstroke engines. Note this when ordering, since a generic search for 'Ford diesel injectors' could lead you to buy injectors meant for different engines. All Ford trucks have different engine applications.

Replace One or the Complete Set?

If the test finds one injector faulty, replacing that part seems to be the only answer. However, you must also consider the condition of the other injectors. In case all injectors have been used to the same extent, i.e., their age and mileage are roughly the same, then all of them might have been subjected to a similar amount of wear.

Therefore, replacing the entire set might improve fuel injection efficiency across the cylinders and reduce the risk of another injector failing soon after. On the other hand, replacing one injector may be justified in case all other parts have been checked and found to work well.

Remanufactured Injectors: Are They Worth Considering?

For an old engine like that, remanufactured parts could prove a viable choice. What sets a remanufactured injector apart from a mere used part is that it has been thoroughly restored and tested to be fit for further use. The critical factor is product quality and proper application. Don't focus only on the injector's cost; focus on its suitability. The Ford 6.9L/7.3L IDI Injector (Reman) is currently available.

What Should Be Checked During Replacement?

Replacing the injectors presents a chance to consider the bigger picture, looking not just at the parts themselves but at the overall fuel system. Specifically, take note of:

• The state of the fuel filter

• Contamination of the fuel itself

• Air intake into the fuel system

• Functionality of the injection pump

• Condition of the fuel lines and connections

• Condition of the injector installation

Can New Injectors Improve Performance?

Replacing worn injectors can restore performance lost over time through regular use. But that doesn't necessarily mean the new injectors will make the engine perform better than it did before. More realistically, the owner can restore fuel delivery and combustion. And if the existing injectors are worn out, performance will change in terms of starting, idling, smoke production, throttle response, and even drivability. When it comes to 6.9 IDI performance parts, it makes sense for owners to build a solid foundation before doing anything else.

Don't Ignore the Rest of the Engine

Injector repair can't fix an engine suffering from other mechanical problems. Before doing extensive work on the fuel system, it's wise to assess compression, injection timing, cooling, the starting system, and fuel delivery.

Even a 6.9L IDI that's been around for many years can suffer from significant wear. The engine can have several minor problems that reduce performance. This becomes even more important in engines that have been sitting idle for a long time. Evaluate the fuel system before driving the truck again.

Choosing Replacement Fuel Injectors

When choosing fuel injectors, start with the engine itself, not just the vehicle's name. Make sure you choose a product made specifically for the 6.9L IDI model and confirm whether it is brand new or remanufactured. This can also help you confirm installation requirements, fitment, and warranty. With older engines, finding the right parts is often easier and less frustrating.

Keeping an Older IDI Working Properly

The simplicity of the 6.9L IDI engine is one reason for this vehicle's popularity, but that doesn't mean its fuel system doesn't need regular maintenance. Over time, injectors wear out, and they affect combustion.

A systematic approach is needed: understand the problem, diagnose the fuel system, check the injectors, and choose new ones for the same engine. Those seeking 6.9 IDI performance parts to improve performance can start with this approach.

Mississippi Diesel Products offers diesel replacement parts, including remanufactured 6.9L/7.3L IDI injectors for older Ford engines. To choose the right part, we need to know the engine application.
