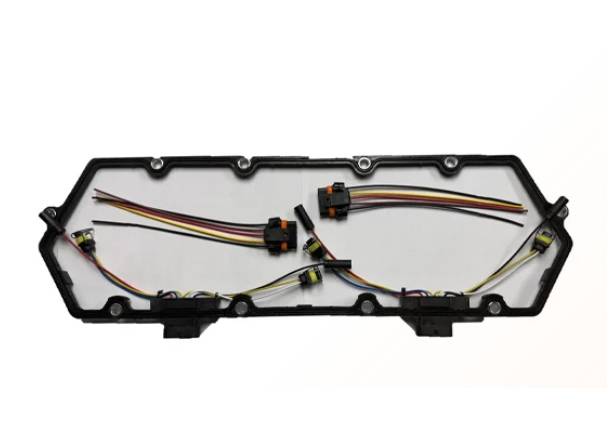

7.3 Valve Cover Gasket Replacement Guide

A valve cover leak is one of those issues that starts small and then escalates. A small amount of oil in the valve cover area isn't a problem at first, but continued leakage can dirty the engine bay, allow oil to reach nearby electrical components, and make other leaks much harder to find.

The 7.3L Powerstroke's valve cover system also plays an additional role, since electrical connections for the engine's fuel injection system run through the valve cover area. When replacing a 7.3 Valve Cover Gasket, understanding the leak source and the condition of surrounding components can make the repair much more effective.

What Does the Valve Cover Gasket Do?

The gasket is positioned between the valve cover and the cylinder head. It forms a seal that prevents engine oil from seeping into surrounding areas. As the gasket ages, constant exposure to the engine's high internal temperatures may cause the material to harden, flatten, or lose its sealing capacity. The fasteners, the cover, and the sealing surface are other factors that determine whether the assembly can hold oil.

Signs the Gasket May Be Leaking

Oil on the valve cover is the clearest indication, but it is not the only one. It depends on the particular place of the leak and its intensity, and the owner may see:

• Oil traces on the valve cover

• An oily smell after driving

• Oil collection in the engine room

• Oil leaking onto wires and connectors

• Slow depletion of engine oil

• Smoke from contact of oil with a hot surface

Why Is the 7.3L Powerstroke Different?

The 7.3L Powerstroke valve covers don't just cover the valvetrain; they also have electrical connections for the injector and glow plug systems. In this regard, the valve cover gasket's integrity becomes very important. A problem with the gasket can also affect nearby parts.

When Should You Replace It?

There is no standard mileage at which all owners of the 7.3L Powerstroke have to replace their valve cover gasket. A hard, worn-out, or compressed valve cover gasket won't seal properly if removed and reused. If you're stripping down the valve cover to repair something else, checking the gasket can help you decide whether you need a replacement.

Preparing for the Replacement

Before performing the 7.3 Powerstroke valve cover gasket replacement procedure, the engine must be cold, and the work area should be relatively clean, because dirt or other debris can cause problems when opening the assembly.

Having the correct replacement gasket, tools, cleaning supplies, and the manufacturer's installation instructions on hand before you start will make the job easier. Check the old gasket and sealing surfaces when you remove it; if the cover or cylinder-head surface is damaged and cannot seal properly, replacing the gasket alone won't be enough.

Removing the Old Gasket

After opening the valve cover and disconnecting the appropriate electrical connections, you can safely remove the valve cover using the proper procedure. Remove the old gasket gently, without vigorously scraping the sealing surfaces. Clean up all traces of oil, contaminants, and gasket residue.

Installing the New Gasket

The valve cover gasket 7.3 Powerstroke engine should depend on the specific application and how it will fit before installing the cover. Keep the sealing surfaces clean, with no oil or extra parts. Tighten the bolts to the correct specification instead of tightening them as hard as you can.

What About a 2002 7.3L?

Owners looking for a 2002 7.3 valve cover gasket need to make sure they order the right gasket before buying one. The 7.3L Powerstroke engine was made over several model years, so this is a logical step. The 2002 year falls within the later 7.3L Powerstroke engine years, but buyers still need to confirm the part will fit their truck.

Choosing a Replacement Gasket

Choose a Ford 7.3 valve cover gasket based on the engine application, not just the description "7.3 diesel." The following need to be considered when ordering:

• Model and year of vehicle

• 7.3L Powerstroke engine

• Application of gasket

• Specifications of product

• Components that are included

• Compatibility with current valve cover

A Simple Repair Worth Doing Correctly

Valve cover gaskets may seem like small parts with little impact on engine operation, but they help ensure a proper seal and keep engine oil in place. Also, when replacing the valve cover gasket on the 7.3L Powerstroke, check any connected wiring.

Whether the leak is minor or has already formed a puddle, the first step is to pinpoint the exact source. Once you identify the faulty valve cover gasket, careful surface preparation, proper fitting, and proper installation will prevent the leak from recurring. Mississippi Diesel Products offers replacement components for Powerstroke diesel engines.
